Modular connectors
Overview
The product known as a modular connector was invented by Western Electric in the United States and standardized by the FCC. Our company has entered into a licensing agreement with AT&T and has been manufacturing products that comply with FCC regulations.
Characteristic
It is ideal as an interface connector, allowing for easy connection and disconnection with a single touch. The assembly of the plug and cord is done through crimping, which can be easily performed using dedicated tools. Being lightweight and compact, it is suitable for connecting high-density equipment.
Specification
| Electrical characteristics | |
|---|---|
| 1)Insulation resistance | 10mΩ or more(500V( DV) for 1 minute) |
| 2)Withstand voltage | AC500V (rms) for 1 minute |
| 3)Contact resistance | 20 mΩ or less |
| 4)Rated current | DC1.5A (jack) DC0.5A (plug) |
| Other characteristic | |
| 1) Holding force | 76N or more |
| 2)Durability | After 200 times plugging/unplugging the connector Contact resistance 40mΩ or less |
UL certified product
The products listed on this website are UL certified (E135604). The number of pins for jacks (2, 4, 6, 8, etc.) is indicated by adding an "※" at the end of the part number (e.g., NTC-623K※)
Board-mounted type
This is a modular jack of the 4-pole, 6-pole, and 8-pole board-mounted type.
It is suitable for PCBs with a thickness of 1.6mm.
- Material
- ① Housing: PBT (UL94V-0) ② Contact: Phosphor Bronze with 0.46μm gold plating
- Standard Colors
- Gray
(Note: The "※" in the model number represents the number of cores. For example, NTC-623PCBL4 represents a 6-pole, 4-core connector.)
- ･･･Zoom in
- ･･･View the detailed PDF
- ･･･Play the video

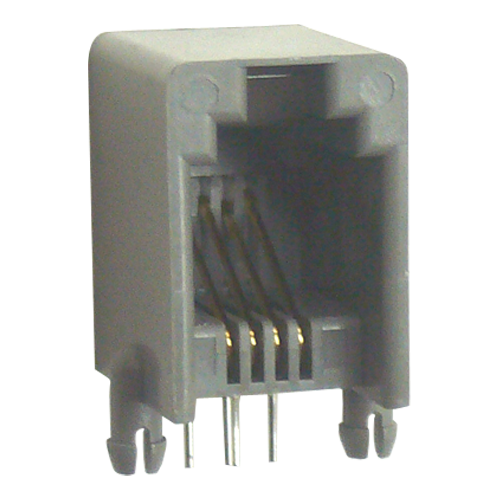

NTC-616PCBL
- product
- NTC-616PCBL
- model
- NTC-616PCBL※

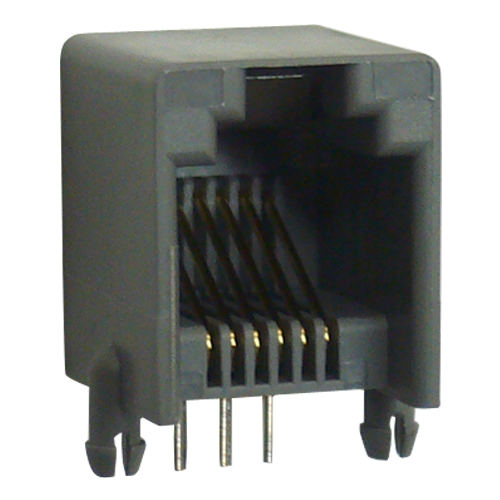

NTC-623PCBL
- product
- NTC-623PCBL
- model
- NTC-623PCBL※

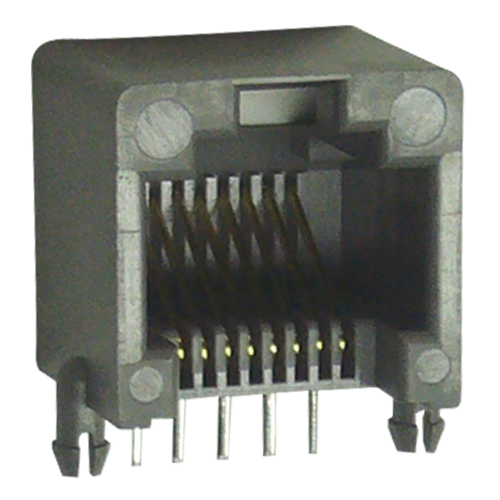

NTC-8PCBL
- product
- NTC-8PCBL
- model
- NTC-8PCBL※
Lead-wire type
This is a modular jack of the 4-pole, 6-pole, and 8-pole lead wire type. Please consult us regarding the length of the lead wire, wire color, and terminal treatment.
- Material
- ① Housing: ABS or PBT ② Contact: Phosphor Bronze with 0.46μm gold plating ③ Lead Wire: AWG26 UL1061
- Standard Colors
- Gray
(Note: The "※" in the model number represents the number of cores. For example, NTC-623K4 represents a 6-pole, 4-core connector.)
- ･･･Zoom in
- ･･･View the detailed PDF
- ･･･Play the video

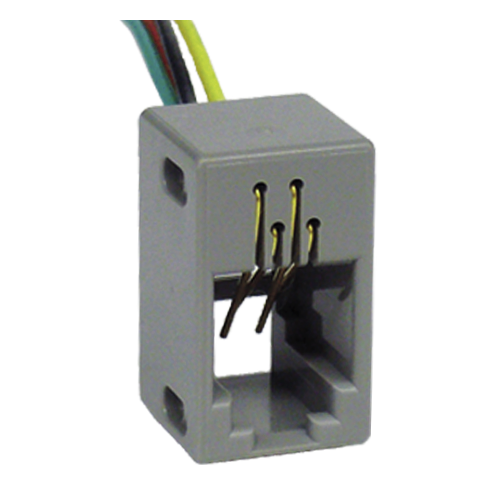

NTC-616E
- product
- NTC-616E
- model
- NTC-616E※

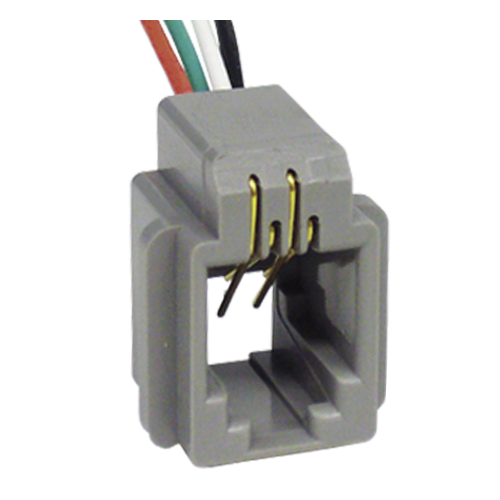

NTC-616MS
- product
- NTC-616MS
- model
- NTC-616MS※

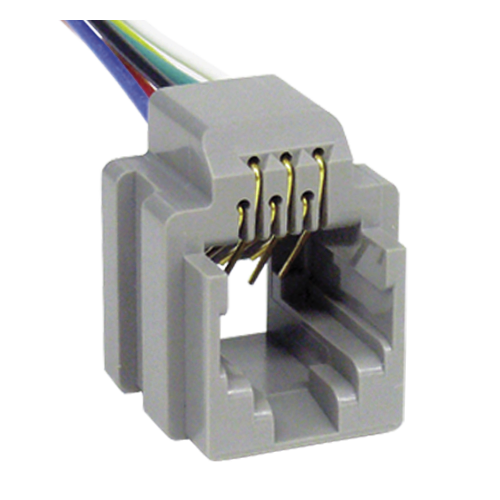

NTC-623K
- product
- NTC-623K
- model
- NTC-623K※

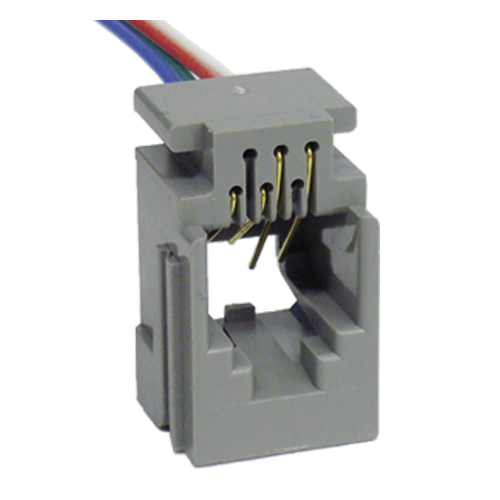

NTC-623P
- product
- NTC-623P
- model
- NTC-623P※

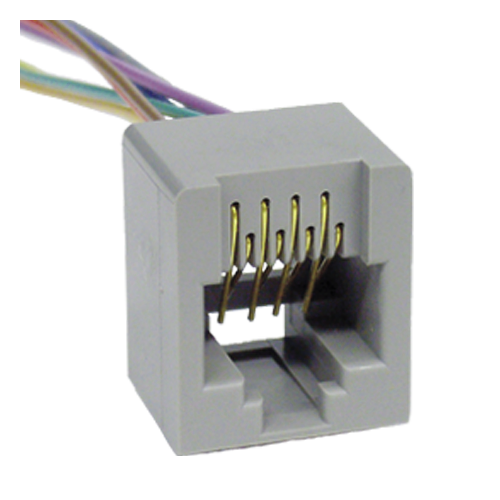

NTC-823SKN
- product
- NTC-823SKN
- model
- NTC-823SKN※
Modular plug
This is a modular plug suitable for flat cords used in telephones. There are versions available for 4-pole, 6-pole, and 8-pole jacks, but our company only manufactures the 6-pole and 8-pole versions.
- Applicable Wire
- Copper foil wire or twisted wire (equivalent to UL1061 AWG#26)
- Material
- ① Housing: Polycarbonate ② Blade Contact: Phosphor Bronze with 1.27μm gold plating
We also have products available for round cord plugs, specifically NTC-6-2R, NTC-6-4R, NTC-6-6R, NTC-8-8R.
- ･･･Zoom in
- ･･･View the detailed PDF
- ･･･Play the video

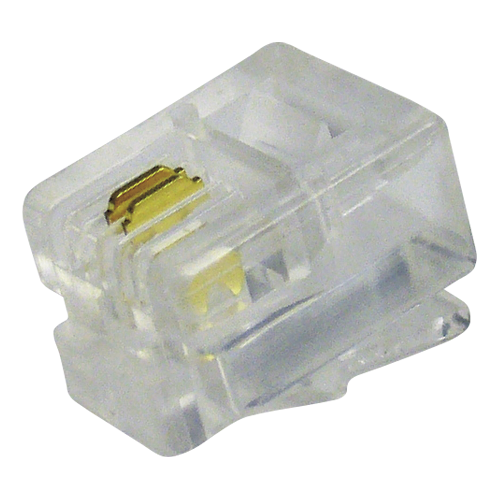

NTC-6-2
- product
- NTC-6-2
- model
- NTC-6-2

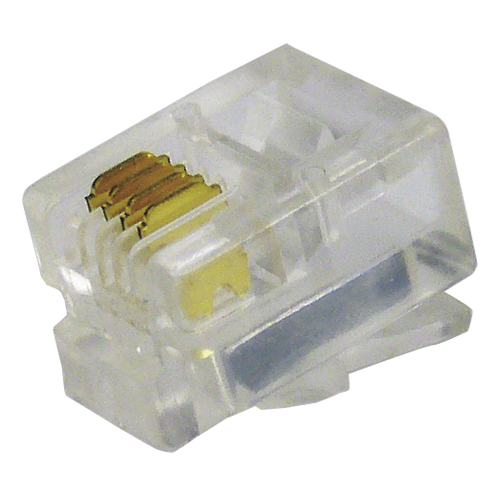

NTC-6-4
- product
- NTC-6-4
- model
- NTC-6-4

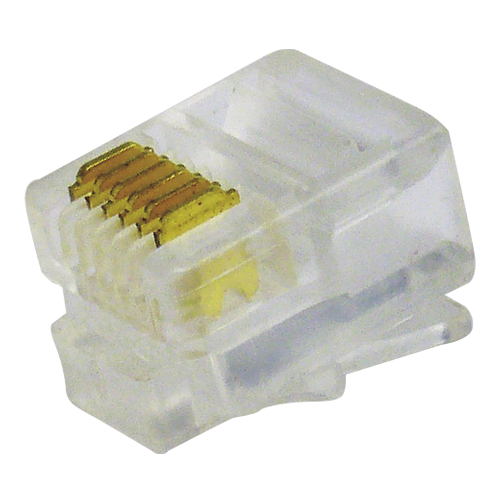

NTC-6-6
- product
- NTC-6-6
- model
- NTC-6-6

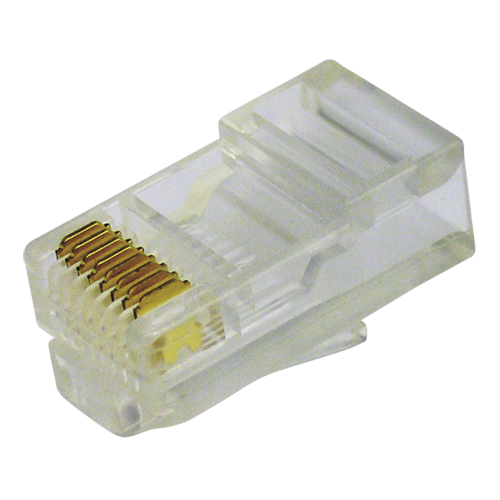

NTC-8-8
- product
- NTC-8-8
- model
- NTC-8-8
